5 ×
Square D / Schneider Electric
12,470 → 4,160 V
Aluminum Windings60 HzKNAN/KNAF
New · 2024 build. Never energized or commissioned.
All 9 Never in Operational Service
Unit Substation Transformer Lot
Seven new 2024 Square D units and two original-manufacturer-refurbished High to Low Voltage units, spanning 1,500–3,750 kVA at 12.47 kV primary. All nine are de-installed and loaded on lowboy trailers in Irving, Texas; trailers are not included.
Actual nameplate detail
9 UnitsTotal Inventory
1.5–3.75MVA Range
12.47 kVPrimary Voltage
Irving, TXCurrent Location
7 New · 2 Refurb.Condition Mix
Over $2MOriginal Project Cost · Not Asking Price
Inventory at a Glance
Understand the complete lot in seconds.
Three exact equipment classes, differentiated by rating, winding material and manufacturer.
2 ×
Square D / Schneider Electric
12,470 → 4,160 V
Copper Windings60 HzKNAN/KNAF
New · 2024 build. Never energized or commissioned.
2 ×
High to Low Voltage
12,470 → 4,160Y / 2,400 V
Aluminum Windings60 Hz
Original-manufacturer refurbished · not new. Set after refurbishment, but never energized or placed into operational service.
Common across all nine units
Three-PhaseLiquid-Filled60 HzNever in Operational ServiceDe-installedStored on Non-Included Lowboys
Ready for technical diligence?Review the public sanitized drawings or request the controlled inspection and test package.
Request Availability & FilesCondition & Technical Proof
Two condition paths. One verified current status.
The seven Square D units are new; the two High to Low Voltage units were refurbished by their original manufacturer. All nine are now de-installed and never entered operational service.
Condition Split
Seven new Square D units; two original-manufacturer-refurbished High to Low Voltage units.
No Operational Service
None of the nine units was energized or placed into operational service.
De-installed
All nine units have been removed and are currently staged in Irving, Texas.
Nameplate Verified

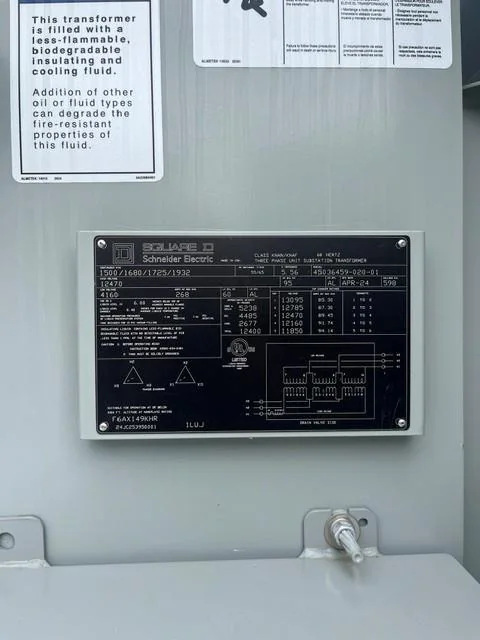

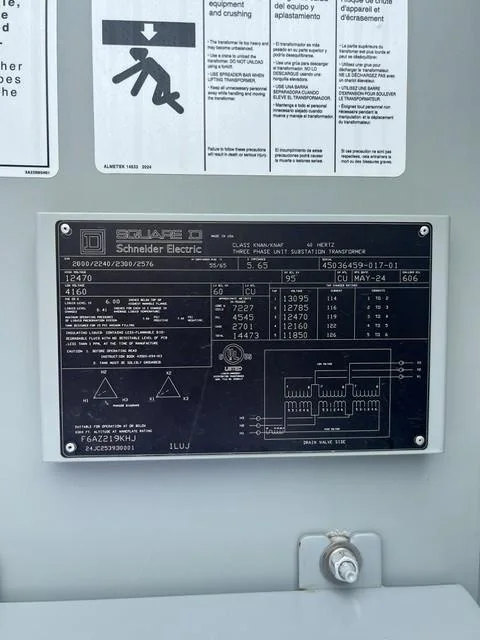

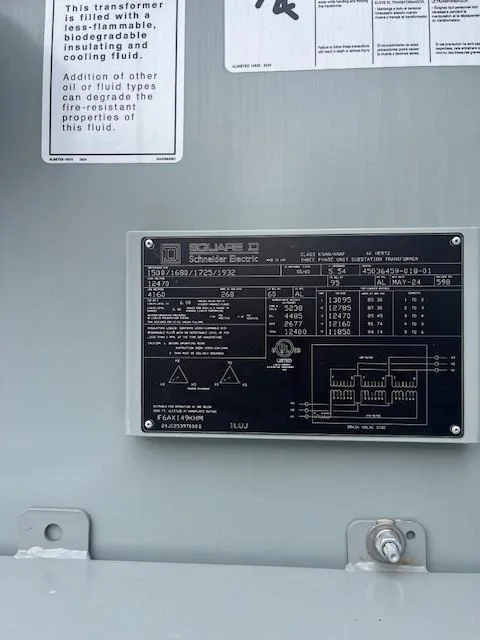

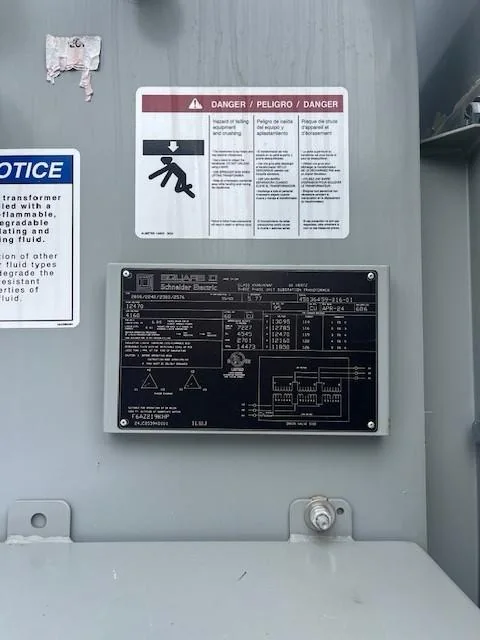

Actual nameplates document each offered class, manufacturer and serial set.
Controlled Diligence
Sanitized drawings are public; inspection and test records are shared with qualified buyers.

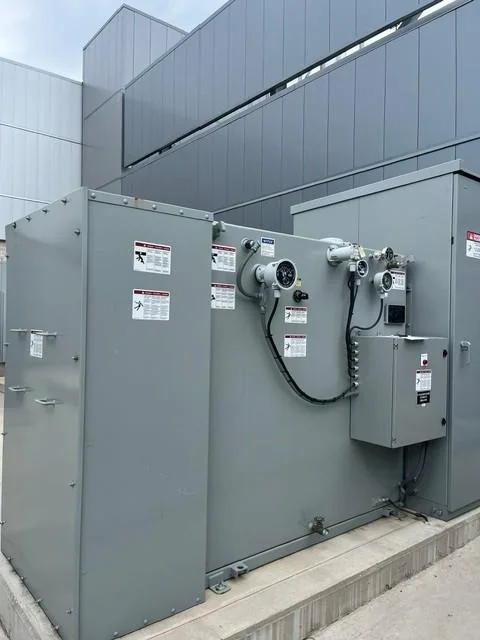

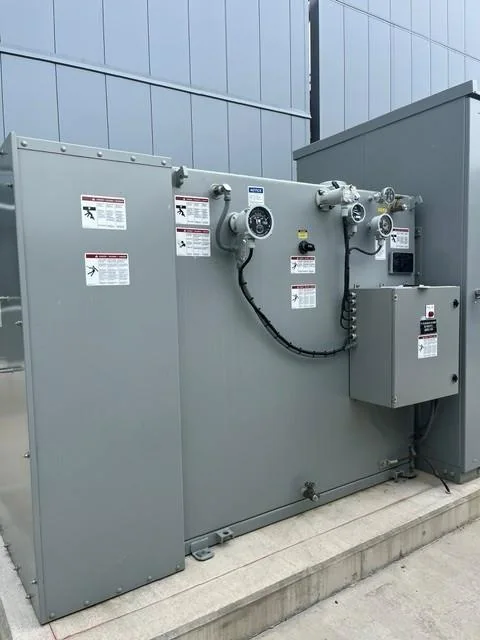

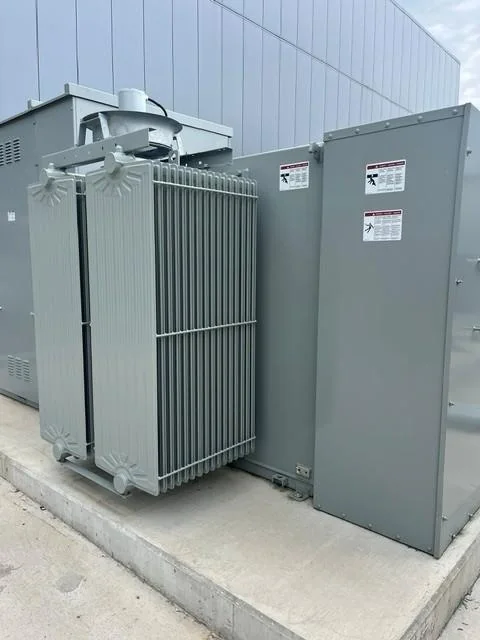

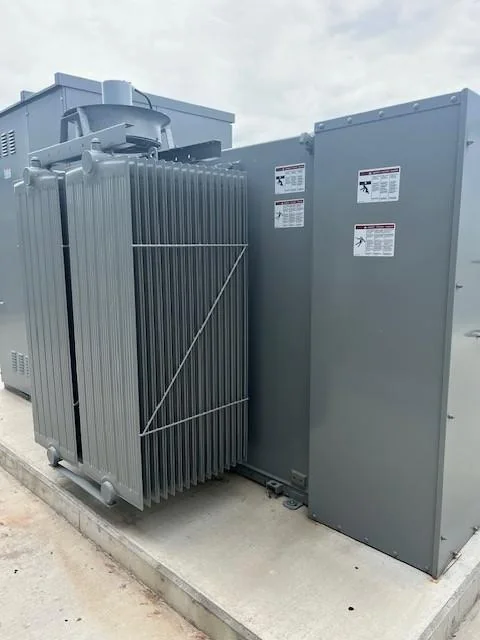

Representative Lot Photography
See the scale, enclosures and actual nameplates.

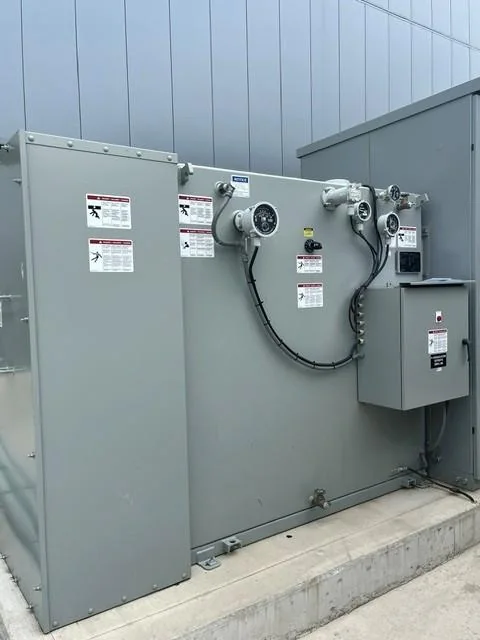

Equipment photographs retain their useful field composition so radiators, cabinets, controls and surrounding context remain visible.
View six additional equipment and identification images
Detailed Inventory & Identification
Exact offered-unit specifications and serials.
Specifications and identification are consolidated by transformer class for faster technical review.
5 × 1,500kVA
Square D / Schneider Electric
New 2024 equipment. Never energized or commissioned. Now de-installed in Irving.
- Primary
- 12,470 V
- Secondary
- 4,160 V
- Nameplate ratings
- 1,500 / 1,680 / 1,725 / 1,932 kVA
- Windings
- Aluminum
View full technical details
- System
- Three-phase · 60 Hz
- Cooling class
- KNAN/KNAF
- Impedance
- 5.56%
- BIL (HV / LV)
- 95 kV / 60 kV
- Temp rise
- 55/65 °C
- LV current
- 268 A
- Built
- April 2024
- Approx. weight
- 12,400 lb total
- Tap positions
- 13,095 / 12,785 / 12,470 / 12,160 / 11,850 V
- Insulating liquid
- Less-flammable · biodegradable
- PCB at manufacture
- Under 1 ppm

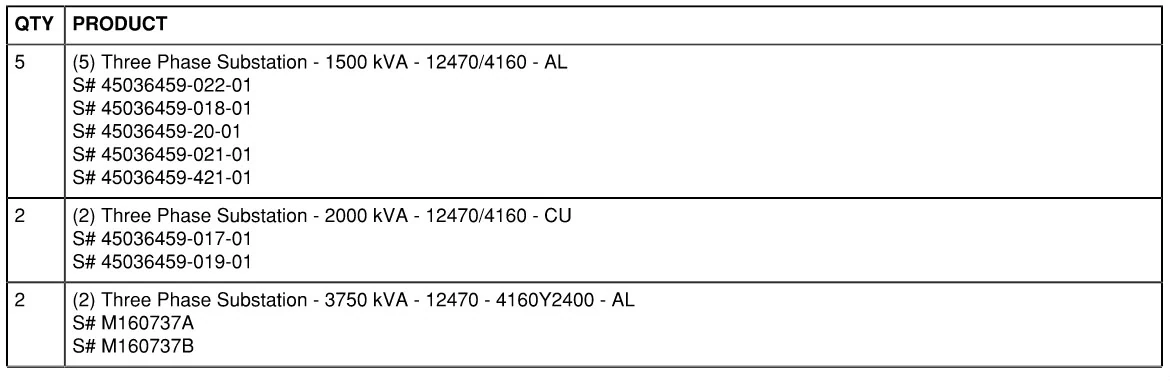

Serial Numbers
45036459-022-0145036459-018-0145036459-020-0145036459-021-0145036459-421-012 × 2,000kVA
Square D / Schneider Electric
New 2024 equipment. Never energized or commissioned. Now de-installed in Irving.
- Primary
- 12,470 V
- Secondary
- 4,160 V
- Nameplate ratings
- 2,000 / 2,240 / 2,300 / 2,576 kVA
- Windings
- Copper
View full technical details
- System
- Three-phase · 60 Hz
- Cooling class
- KNAN/KNAF
- Impedance
- 5.65%
- BIL (HV / LV)
- 95 kV / 60 kV
- Temp rise
- 55/65 °C
- Built
- May 2024
- Approx. weight
- 14,473 lb total
- Tap positions
- 13,095 / 12,785 / 12,470 / 12,160 / 11,850 V
- Insulating liquid
- Less-flammable · biodegradable
- PCB at manufacture
- Under 1 ppm
Serial Numbers
45036459-017-0145036459-019-012 × 3,750kVA

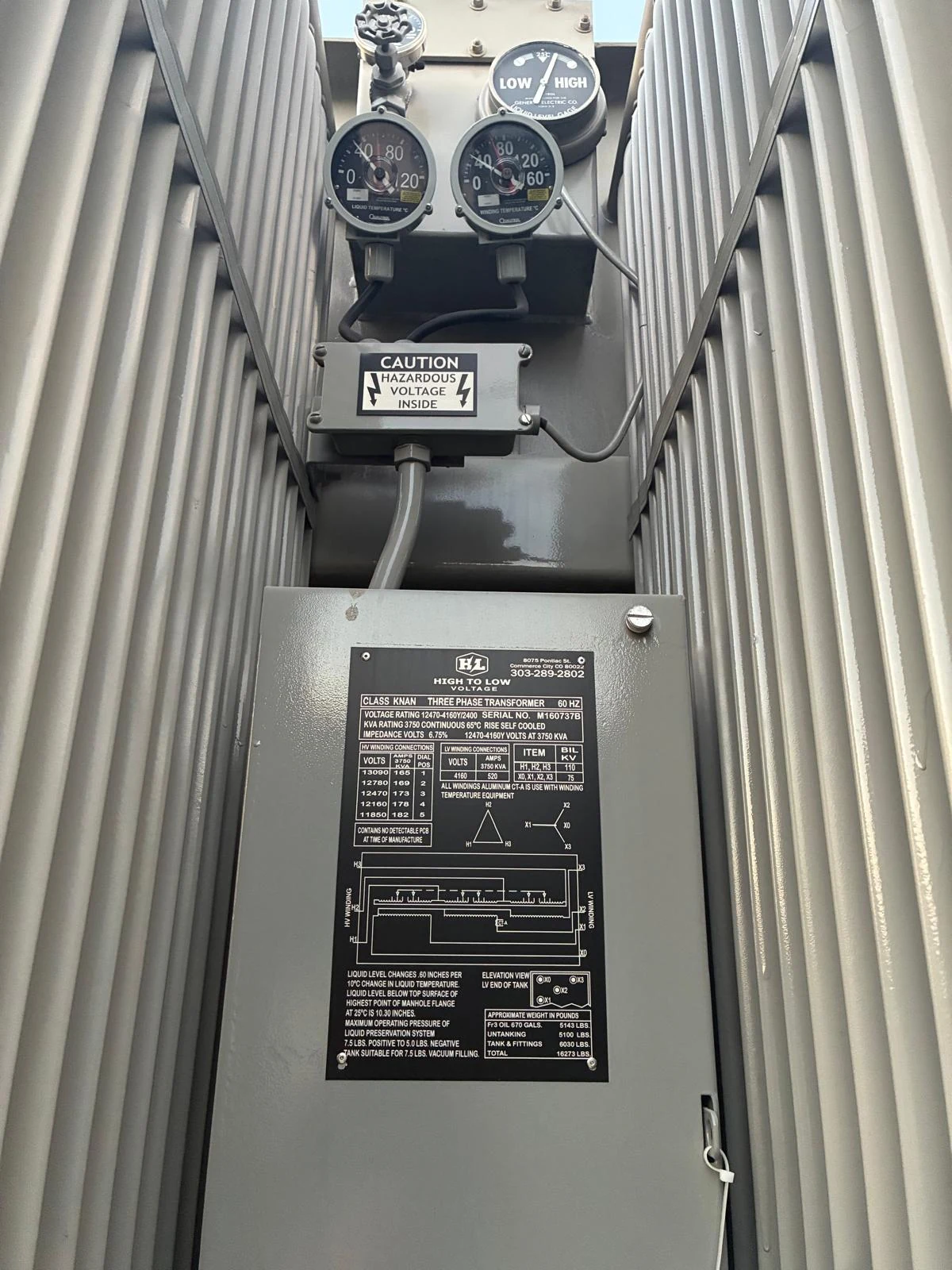

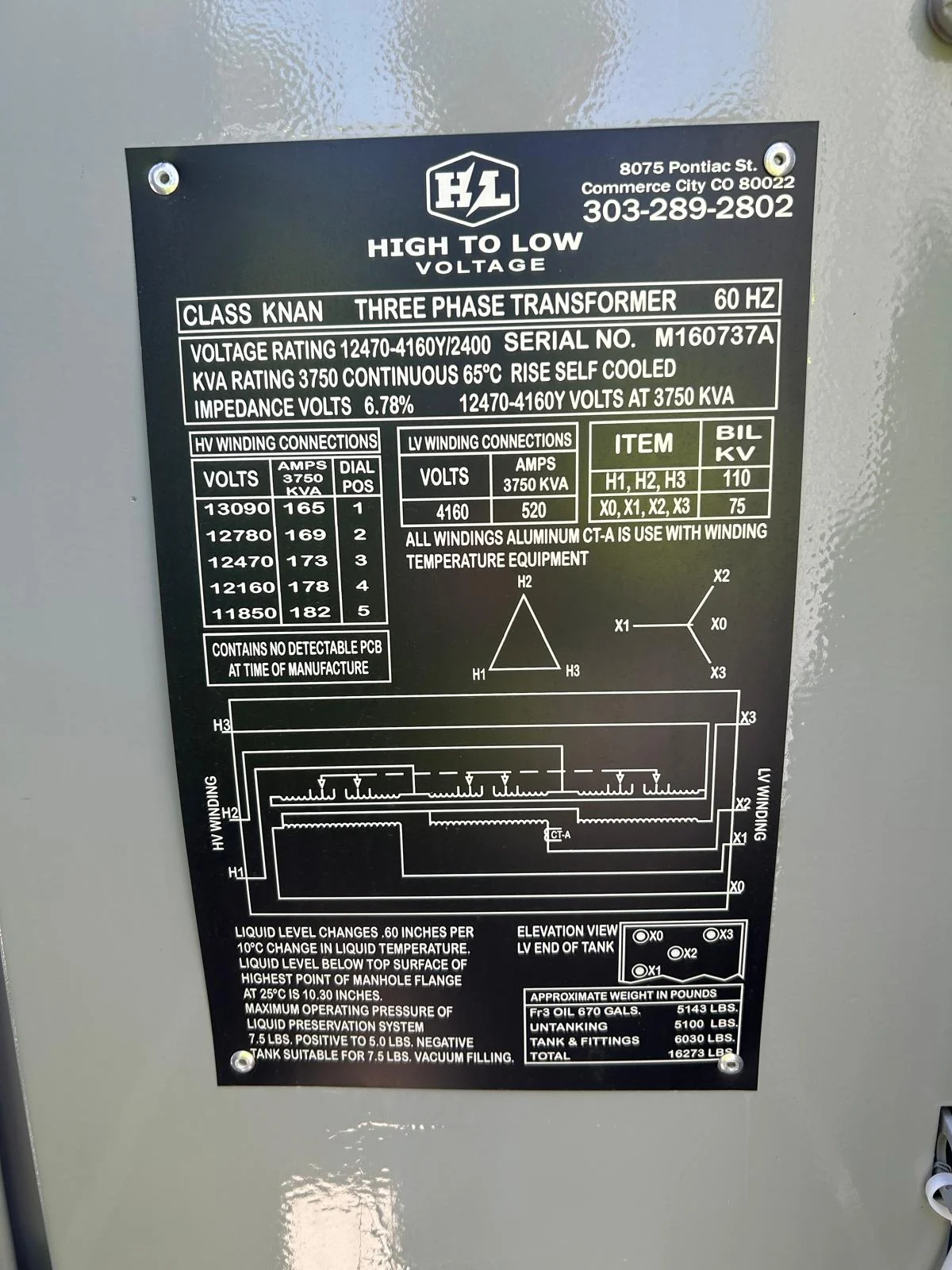

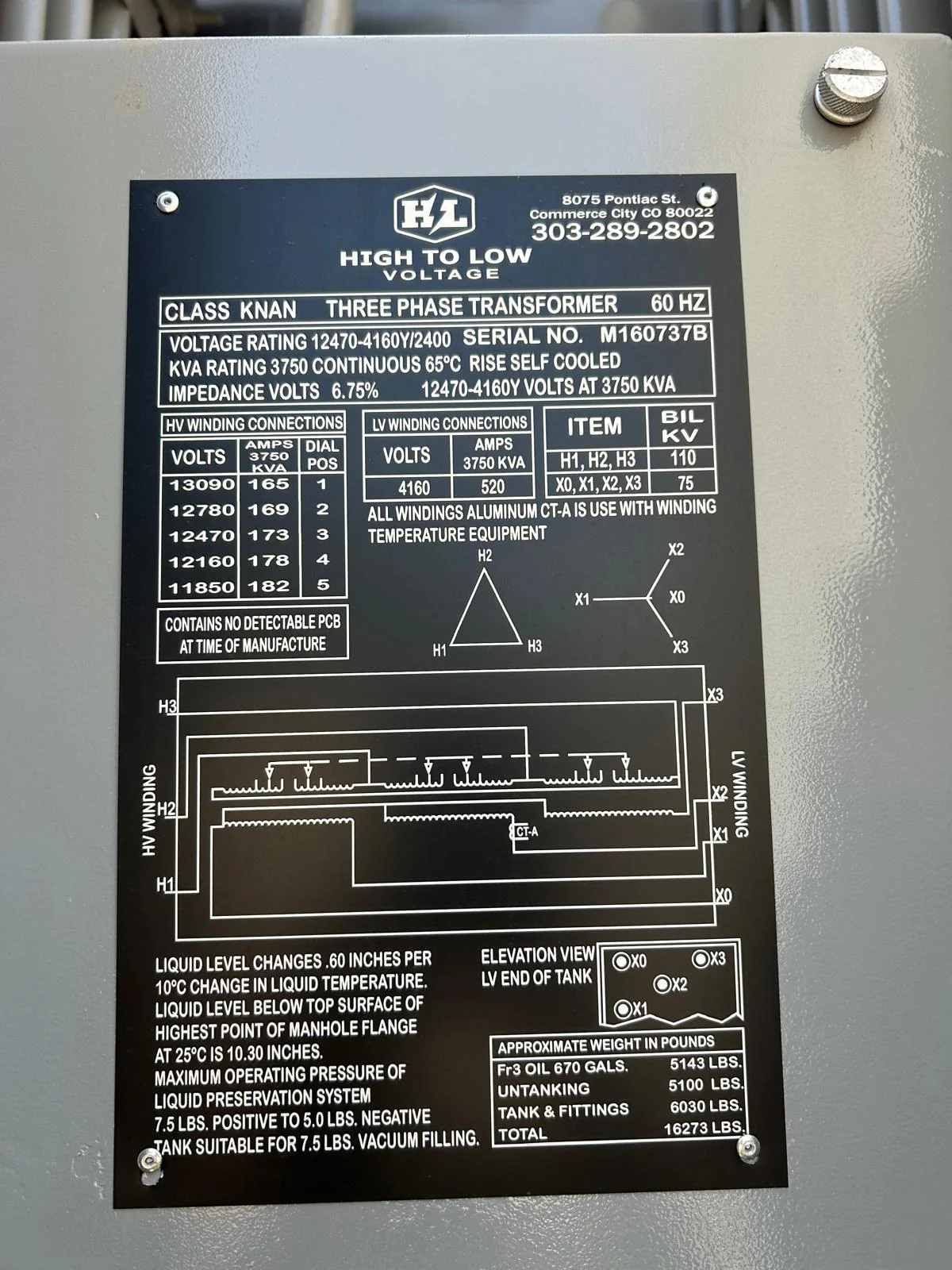

High to Low Voltage
Original-manufacturer refurbished; not new. Never placed into service before refurbishment; later set/installed, but never energized or placed into operational service. Now de-installed in Irving.
- Primary
- 12,470 V
- Secondary
- 4,160Y / 2,400 V
- Windings
- Aluminum
- System
- Three-phase · 60 Hz
View full technical details
- Cooling class
- KNAN · continuous self-cooled
- Impedance
- 6.75%
- BIL (HV / LV)
- 110 kV / 75 kV
- Temp rise
- 65 °C
- LV current
- 520 A at 3,750 kVA
- Tap positions
- 13,090 / 12,780 / 12,470 / 12,160 / 11,850 V
- Temp equipment
- CT-A used with winding temperature equipment
- PCB at manufacture
- No detectable PCB
- Current transport

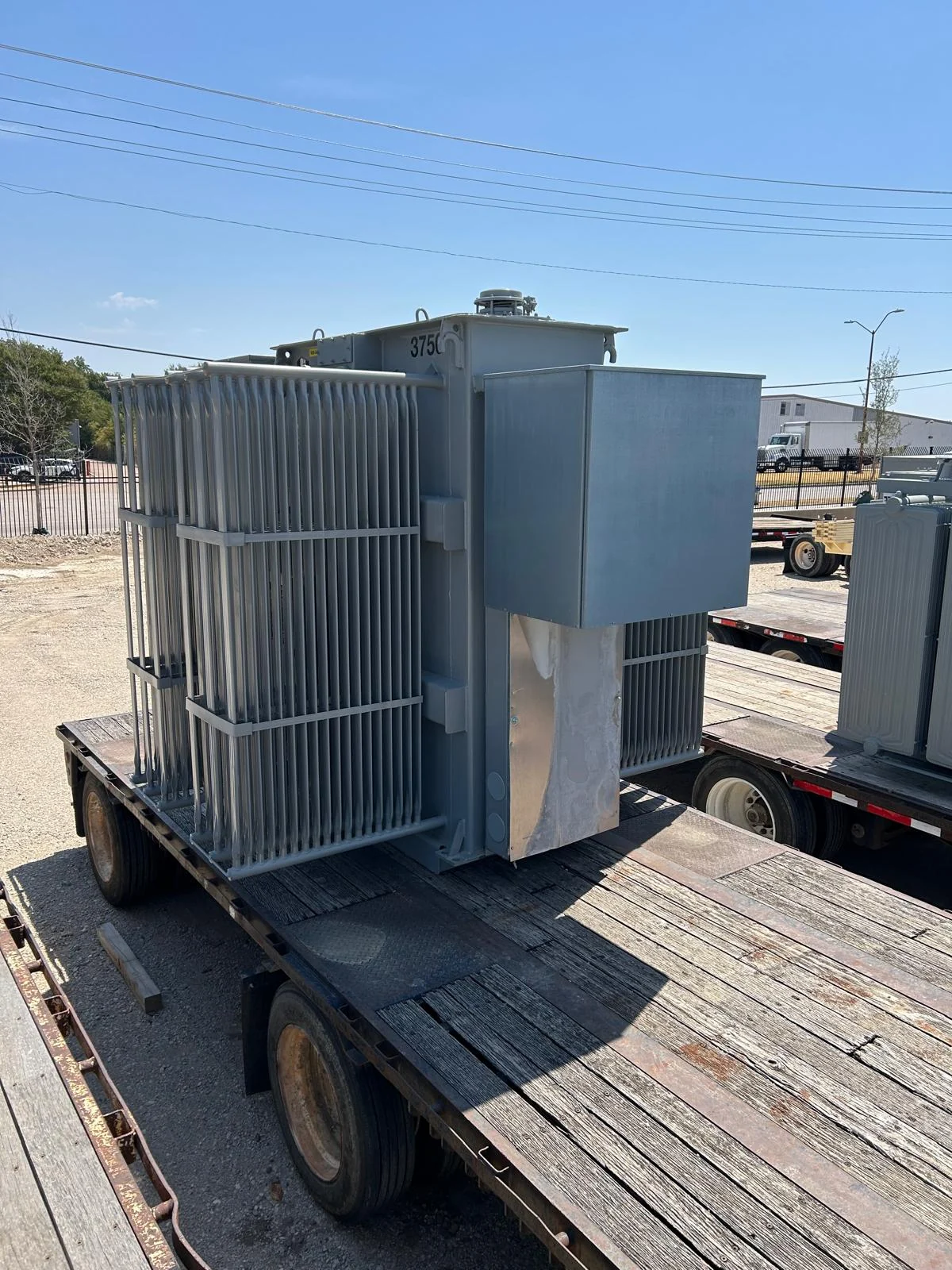

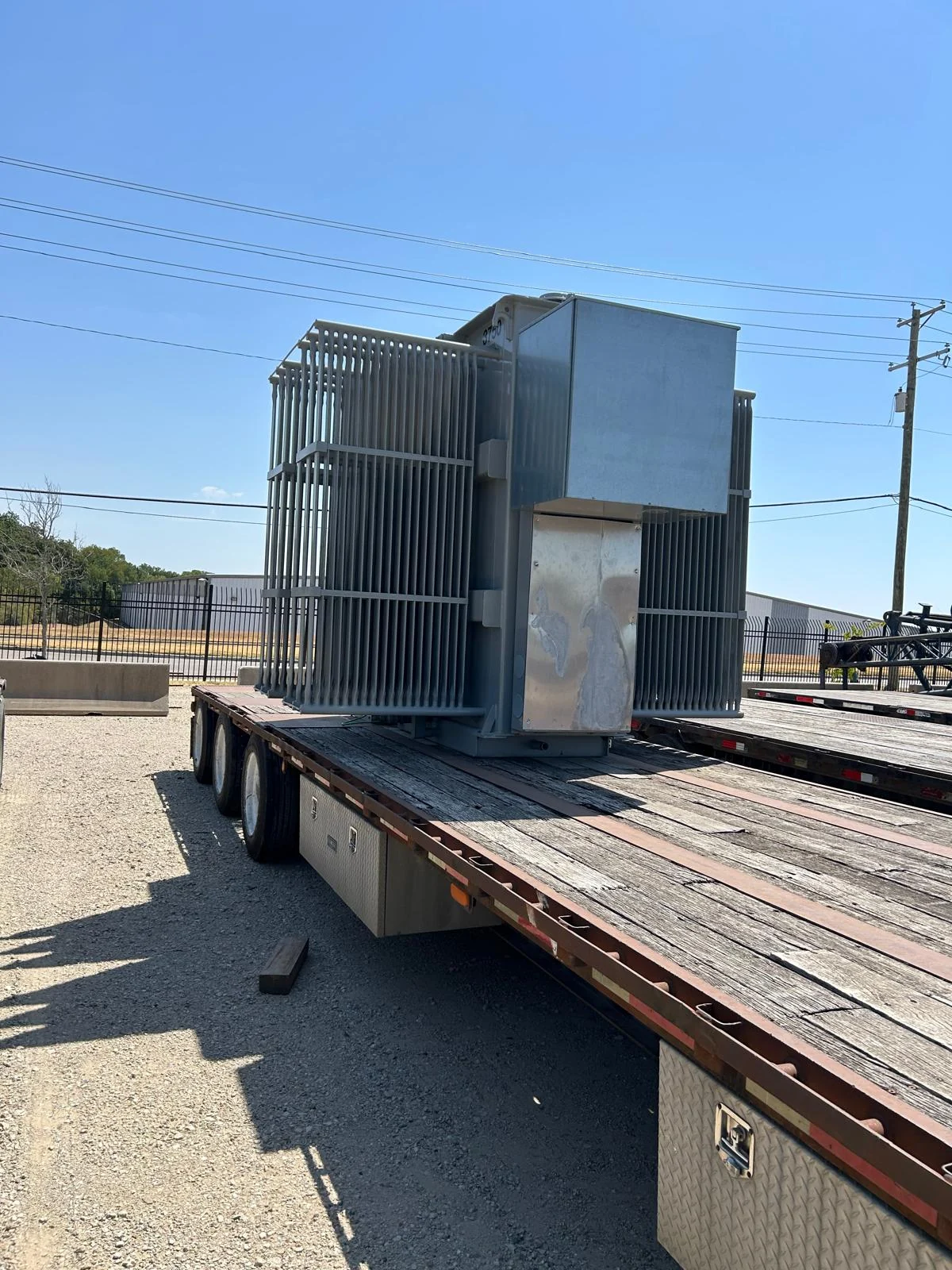

- Loaded on lowboys; trailers not included
Serial Numbers
M160737AM160737BSpecification control: individual offered-unit nameplates and the sale inventory govern. Some sanitized supporting drawings preserve historical 13.8 kV design references; those references are not substitutes for the offered units’ verified 12,470 V primary specifications. Buyers should confirm final application, rigging and transport suitability.
Drawings & Technical Documentation
Public drawings. Controlled diligence files.
Download sanitized engineering drawings now. Unit-specific inspection records and available test documentation can be provided to qualified buyers upon request.
Factory Drawings
Nameplate Data
Inspection Records
Test Documentation
Sanitized Public Drawings
English-language drawing files · identifying title-block data irreversibly removed
Square D 1,500 kVA Transformer Drawings5 pages · elevation, plan, side views, wiring and nameplate drawingPDF Download
Square D 2,000 kVA Transformer Drawings5 pages · elevation, plan, side views, wiring and nameplate drawingPDF Download
Transformer Yard Layout Drawing1 page · equipment and electrical-layout contextPDF Download
These sanitized drawings support buyer diligence. The offered-unit nameplates and sale inventory control. Historical 13.8 kV design references shown in drawing files do not replace the offered units’ verified 12,470 V specifications.
Square D-specific drawing notes, fluid references, design standards and test requirements apply only to the seven Square D units. They are not presented as specifications for the two High to Low Voltage units. Inspection and test-report source files are not public.
Qualified Buyer Inquiries
Request Availability & Files
Discuss the nine-unit lot, controlled diligence files, pickup and current commercial terms.
Who You're Dealing With
Contact for current lot pricing · Irving / Dallas-Fort Worth, Texas · Lowboy trailers not included
