01
PRODUCT BROCHURE · 8 PAGES

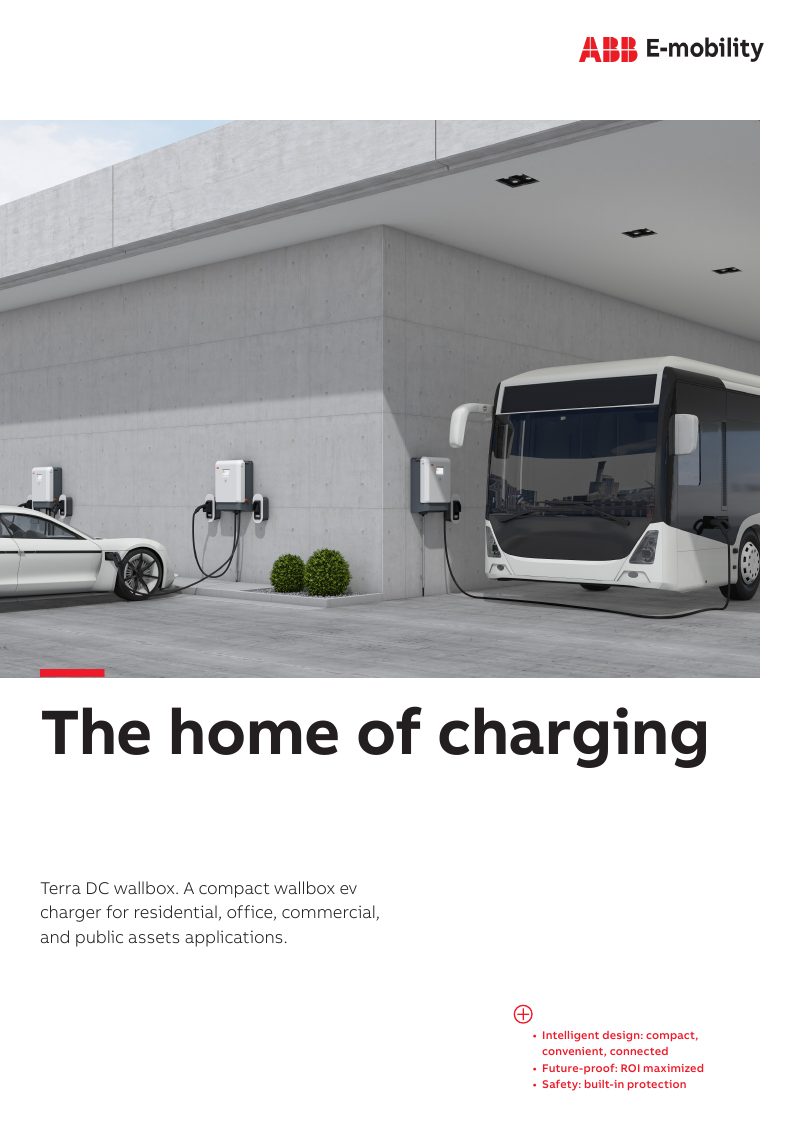

Terra DC Wallbox brochure
ABB’s full product overview, applications, charging experience and technical highlights.
NEW · FACTORY PACKAGED · 180 UNITS
COMPACT COMMERCIAL DC CHARGINGTerra DCWall Box.
US$5,495
EACHBUY 5+ UNITS
Commercial DC charging for depots, dealerships and your next customer project. Choose from 180 new, factory-packaged units under one ABB part number.
Confirm the collection warehouse for your quantity.
THE EQUIPMENTABB · 6AGC107062

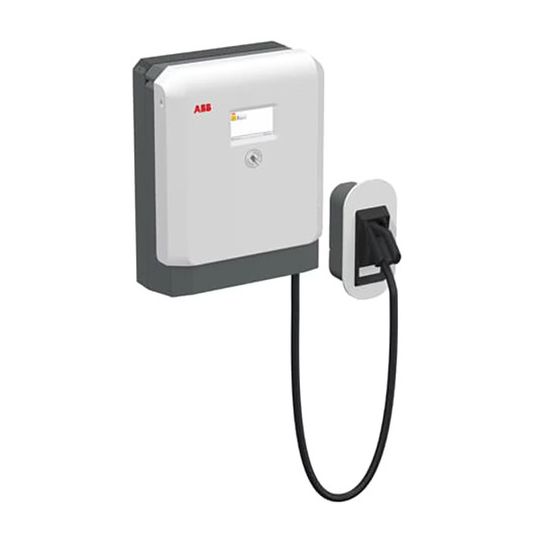

Product reference photo · actual inventory photos below
Wall-mounted. Single CCS1.24 kW peak · 22.5 kW continuous DC output
24 kWPeak DC output
22.5 kWContinuous DC output
CCS1Single charging connector
480VThree-phase AC input
ONE UNIT OR A PROJECT BATCH
Choose your quantity.
See your equipment cost.
All three tiers are published. Five or more units qualify for US$5,495 each.
1 UNITUS$7,495EACHCalculate my equipment total 2–4 UNITSUS$6,495EACHCalculate my equipment total 5+ UNITSUS$5,495EACHCalculate my equipment total
USD per unit. Freight, taxes, installation and commissioning are additional. Availability and collection warehouse are confirmed for your order.
SEE THE HARDWARE IN ACTION
Plug in. Tap. Charge.
A closer look at the connector, touchscreen and charging display.
Video could not load. Open the MP4 directly.
THE CHARGING SEQUENCE
Follow the power.
An interactive 30-second equipment tour. Pause, replay or move through the sequence at your own pace.
Fleet depot / dealership
US$ PER UNIT · BUY 5+
5,495New · factory packaged · single CCS1
Example session: Authorizing
Building
480V AC→ABB charger
AC → DC→Vehicle
DC battery
480V AC→ABB charger
AC → DC→Vehicle
DC battery
01
US$5,495 each. Buy 5+ units.
Published quantity pricing. Choose the number your project needs.
Illustrative concept · compatibility unverified
30 s loop
0:00 / 0:30
Playing
MAKE THE PARKING TIME COUNTWhat can a
What can a
parking stop deliver?
Explore energy delivered at a steady 22.5 kW. Pick a parking time to see the simple estimate.
Actual energy varies with the vehicle, battery state, charging limits and conditions. This is an energy estimate, not a promised range or charge percentage.
MODELED ENERGY DELIVERY1 hour
kWh
0 kWh45 kWh / 2 hours
Building AC ABB conversion Vehicle DC
CHECK THE SITE AND VEHICLE
Compact hardware.
Clear connection requirements.
The listed configuration is ABB part 6AGC107062. Check the unit nameplate and current ABB instructions with your installer.
1 × CCS1
Confirm the vehicle’s charge port before ordering.
- ABB part number
- 6AGC107062
- DC output
- 24 kW peak / 22.5 kW continuous
- AC input
- 480Y/277V · three-phase · 32A · 60Hz
- Charging connector
- 1 × CCS1
- Approximate dimensions
- 30.3″ H × 23″ W × 11.8″ D
- Access / protocol
- RFID / OCPP 1.6
- Condition
- New · never installed · factory packaged
- Available quantity
- 180 units total
RFID and OCPP 1.6 are manufacturer-listed features. Confirm the selected units’ configuration and compatible software; mounting, electrical work and commissioning are arranged separately.
OFFICIAL ABB DOCUMENTSFour downloads.
Four downloads.
Straight from ABB.
Review the product overview, features and three-phase installation requirements before you plan a site or place an order.
02
PRODUCT LEAFLET · 2 PAGES

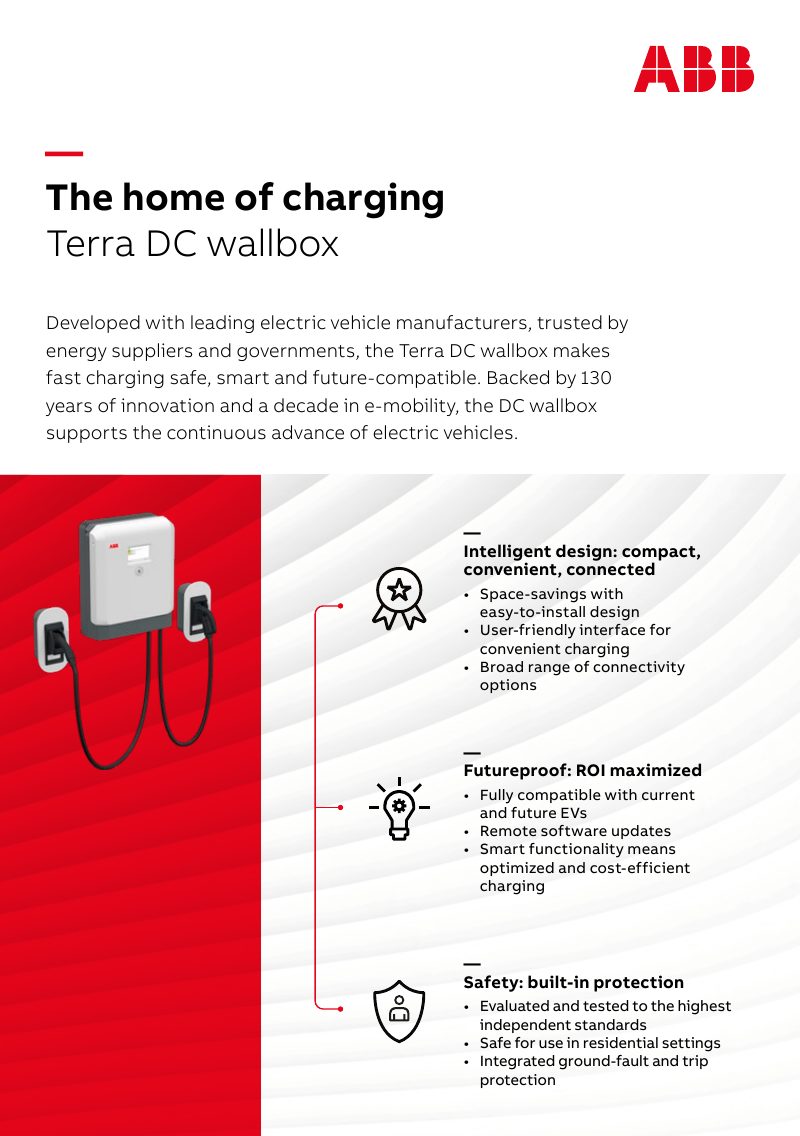

Terra DC Wallbox leaflet
A concise summary of the charger’s design, connectivity, safety and future-ready features.
03
INFOGRAPHIC · 1 PAGE

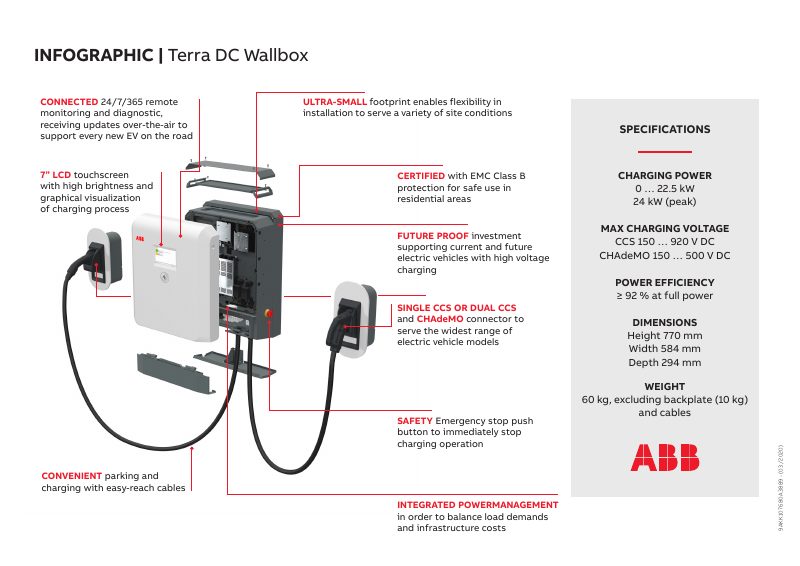

Destination DC infographic
An at-a-glance equipment diagram with key dimensions, charging power and capabilities.
04
UL INSTALLATION MANUAL · 44 PAGES

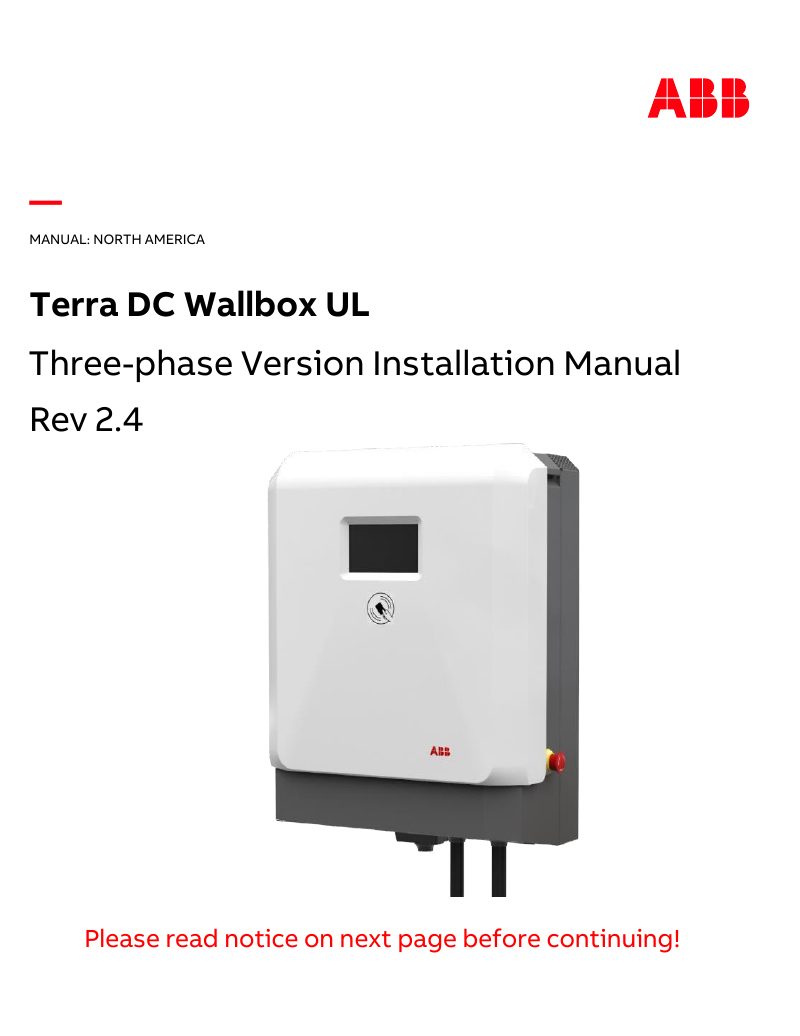

Three-phase installation manual
The North American UL manual covering site preparation, installation and commissioning, including part 6AGC107062.
ABB SOURCE SET
Documents are provided in English. Manufacturer publications may cover more than one configuration; confirm the exact part number, site requirements and current ABB instructions with a qualified installer.
SAVE IT. SHARE IT.
The equipment overview.
A product sheet without pricing. Use the current quantity tiers above when discussing your purchase.
Return to current pricing
Without pricing
Product overview
A matching product sheet for conversations without a quoted price.
Download sell sheet PNG · 1122 × 1402 · EnglishBEFORE YOU ORDER
Good questions.
Clear answers.
The practical details for your purchase and installation plan.
Are these new or refurbished?
The units are new, never installed and in original factory packaging. The current inventory totals 180 units. Ask about inspection by appointment.
What is the price for my quantity?
One unit is US$7,495. Two to four units are US$6,495 each. Five or more units are US$5,495 each. Equipment prices are in USD; freight, taxes, installation and commissioning are additional.
Will it work at my location?
For part 6AGC107062, the listed input is 480Y/277V three-phase AC, 32A, 60Hz. Have a qualified installer confirm your electrical supply, mounting, protection, permits and commissioning requirements against the unit nameplate and ABB instructions.
Which connector does this offer include?
One CCS1 connector. Confirm your vehicle’s charging port and compatibility before ordering. RFID and OCPP 1.6 are manufacturer-listed features; confirm the selected units’ hardware and software setup.
How do software, service and warranty work?
Software subscriptions, installation and commissioning are separate. Ask ABB to confirm service-contract eligibility and any applicable coverage for the selected serial numbers, and arrange any ABB contract directly with ABB. Proven Performer does not arrange these contracts or provide referrals. Request written warranty terms before purchase.
Where do I collect the units?

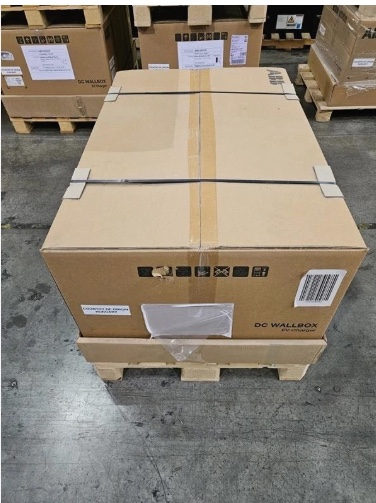

Confirm the collection warehouse for your quantity when you inquire. The warehouse photos shown here are actual Atlanta inventory. Inspection and freight arrangements can be discussed before purchase.
LET’S PLAN YOUR QUANTITY
Your next charging project starts here.
Calculate your equipment total, then tell us where and when you need the units. We’ll confirm availability, inspection and collection arrangements.
ABB TERRA DC WALL BOXUS$5,495EACH · BUY 5+
1 unit: US$7,495
2–4 units: US$6,495 each
5+ units: US$5,495 each
Buying for your sites or your customers?
Choose your plan and share the quantity, destination and timing.
